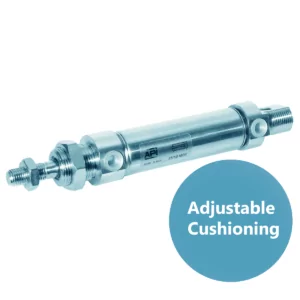

25mm Bore MDX Adjustable Stainless Steel Double Acting Cylinder ISO 6432

FREE UK MAINLAND DELIVERY available on orders over £250 Exclusions apply

Product Code	Description	PriceEx. VATIncl. VAT	TotalEx. VATIncl. VAT	Quantity
Product Code25/10MDMX	25mm Bore / 10mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6432	£123.94Ex. VAT£148.73Incl. VAT	£123.94Ex. VAT£148.73Incl. VAT	QUANTITYQTY 25mm Bore / 10mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6432 quantity
Product Code25/25MDMX	25mm Bore / 25mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6433	£126.95Ex. VAT£152.34Incl. VAT	£126.95Ex. VAT£152.34Incl. VAT	QUANTITYQTY 25mm Bore / 25mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6433 quantity
Product Code25/50MDMX	25mm Bore / 50mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6434	£132.71Ex. VAT£159.25Incl. VAT	£132.71Ex. VAT£159.25Incl. VAT	QUANTITYQTY 25mm Bore / 50mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6434 quantity
Product Code25/80MDMX	25mm Bore / 80mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6435	£138.51Ex. VAT£166.21Incl. VAT	£138.51Ex. VAT£166.21Incl. VAT	QUANTITYQTY 25mm Bore / 80mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6435 quantity
Product Code25/100MDMX	25mm Bore / 100mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6436	£142.34Ex. VAT£170.81Incl. VAT	£142.34Ex. VAT£170.81Incl. VAT	QUANTITYQTY 25mm Bore / 100mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6436 quantity
Product Code25/125MDMX	25mm Bore / 125mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6437	£147.15Ex. VAT£176.58Incl. VAT	£147.15Ex. VAT£176.58Incl. VAT	QUANTITYQTY 25mm Bore / 125mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6437 quantity
Product Code25/160MDMX	25mm Bore / 160mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6438	£153.77Ex. VAT£184.52Incl. VAT	£153.77Ex. VAT£184.52Incl. VAT	QUANTITYQTY 25mm Bore / 160mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6438 quantity
Product Code25/200MDMX	25mm Bore / 200mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6439	£161.33Ex. VAT£193.60Incl. VAT	£161.33Ex. VAT£193.60Incl. VAT	QUANTITYQTY 25mm Bore / 200mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6439 quantity
Product Code25/250MDMX	25mm Bore / 250mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6440	£171.11Ex. VAT£205.33Incl. VAT	£171.11Ex. VAT£205.33Incl. VAT	QUANTITYQTY 25mm Bore / 250mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6440 quantity
Product Code25/320MDMX	25mm Bore / 320mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6441	£186.66Ex. VAT£223.99Incl. VAT	£186.66Ex. VAT£223.99Incl. VAT	QUANTITYQTY 25mm Bore / 320mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6441 quantity
Product Code25/400MDMX	25mm Bore / 400mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6442	£206.08Ex. VAT£247.30Incl. VAT	£206.08Ex. VAT£247.30Incl. VAT	QUANTITYQTY 25mm Bore / 400mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6442 quantity
Product Code25/500MDMX	25mm Bore / 500mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6443	£224.64Ex. VAT£269.57Incl. VAT	£224.64Ex. VAT£269.57Incl. VAT	QUANTITYQTY 25mm Bore / 500mm Adjustable Stroke Stainless Steel Double Acting Cylinder ISO 6443 quantity

Download Datasheet

Product description

Stainless Steel 316L double acting, magnetic pneumatic cylinder conforming to ISO 6432. End caps manufactured from AISI 316 stainless steel, barrel manufactured from AISI 304 stainless steelm and allows for reed switch mounting. Piston rod AISI 316 lapped stainless steel. Polyurethane piston rod seal ensures low friction and long service life. Operating pressure of 1 – 10 bar with temperature rating of -20C to 80C. ATEX upon request.

25mm Bore MDMX Adjustable Stainless Steel Double Acting Cylinder ISO 6432

Stainless Steel 316L double acting, magnetic pneumatic cylinder conforming to ISO 6432. End caps manufactured from AISI 316 stainless steel, barrel manufactured from AISI 304 stainless steelm and allows for reed switch mounting. Piston rod AISI 316 lapped stainless steel. Polyurethane piston rod seal ensures low friction and long service life. Operating pressure of 1 - 10 bar with temperature rating of -20C to 80C. ATEX upon request.

25mm Bore MDMX Adjustable Stainless Steel Double Acting Cylinder ISO 6432
