YB-P20 - Heavy Duty Production Swaging Machine - 1/4" to 1-1/2"

YB-P20 – HEAVY DUTY PRODUCTION SWAGING MACHINE – 1/4″ TO 1-1/2″ FROM Hydraulic Megastore

The YB-P20 swaging machine is an excellent machine to have in a busy workshop where the day to day production of hydraulic hoses is key. This machine is reliable, great quality and very competitively priced, three of the key points that people look for when choosing new equipment to become a part of their business.

Some features of the YB-P20 are:

• Capacity: 1/4″ to 1-1/4″ 2 wire and 1/4″ to 1″ 4 wire
• Can swage up to 1-1/2″ 2 wire with non-standard 54mm die set
• Comes with quick change stand and tool
• Available in single or three phase
• Supplied with foot pedal as standard

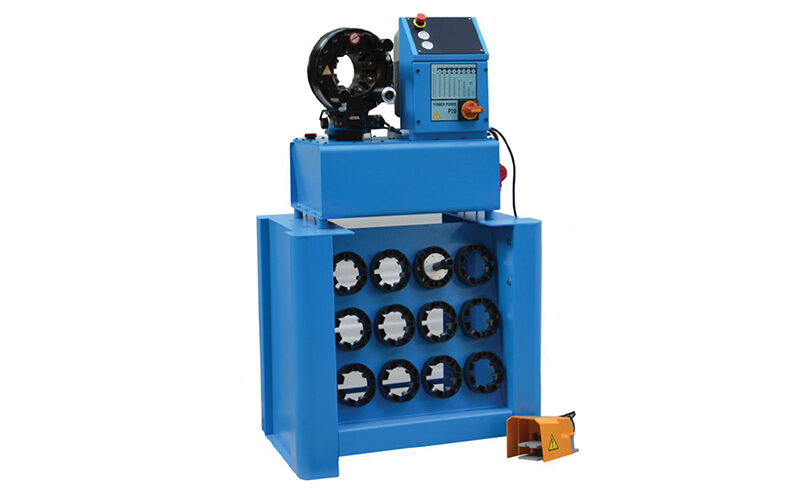

This machine comes with the quick change tool and die storage rack, perfect for quickly swapping your die set to change between hose sizes. The YB-P20 also comes with a heavy duty foot pedal as an optional accessory, many operators prefer the foot pedal operation while some prefer the use of the built in push button controls, you have the option to use either.

The bottom set of master dies are protected by foam inserts, these are used to protect the swaging head from damage that can be caused by parts falling into the swaging head and then being operated.

Once the swaging head has completed the closing cycle, the LED under the close button will illuminate to let you know your crimp is complete. Similarly, once the swaging head is all of the way out the LED will illuminate to show you the cycle is complete.

Please note that this machine is supplied dry (not filled with oil) the YB-P20 has a capacity of 32 litres, we recommend purchasing 40 litres of standard hydraulic 46 oil.

Standard die sets included with the YB-P20:

• 6*
• 8*
• 10*
• 12*
• 14
• 16
• 19
• 23
• 27
• 31
• 36
• 41
• 47
• 54*

*These die sets are non-standard and not included within the price of the machine. There are additional die sets that are available at extra cost.
