| Product Code | Description | PriceEx. VATIncl. VAT | TotalEx. VATIncl. VAT | Quantity |
|---|---|---|---|---|
| Product CodeMG20051 | up to 20+ LPM, 0.05 kW/°C, 1/2” BSP ports 1 phase | £225.25Ex. VAT£270.30Incl. VAT | £225.25Ex. VAT£270.30Incl. VAT | |
| Product CodeMG20101 | up to 40+ LPM, 0.072 kW/°C, 1/2" BSP ports 1 phase | £324.06Ex. VAT£388.87Incl. VAT | £324.06Ex. VAT£388.87Incl. VAT | |
| Product CodeMG20151 | up to 80+ LPM, 0.122 kW/°C, 1” BSP ports 1 phase | £448.53Ex. VAT£538.24Incl. VAT | £448.53Ex. VAT£538.24Incl. VAT | |
| Product CodeMG20153 | up to 80+ LPM, 0.122 kW/°C, 1” BSP ports 3 phase | £446.55Ex. VAT£535.86Incl. VAT | £446.55Ex. VAT£535.86Incl. VAT | |
| Product CodeMG20241 | up to 120+ LPM, 0.31 kW/°C, 1” BSP ports 1 phase | £632.30Ex. VAT£758.76Incl. VAT | £632.30Ex. VAT£758.76Incl. VAT | |
| Product CodeMG20243 | up to 120+ LPM, 0.31 kW/°C, 1” BSP ports 3 phase | £626.36Ex. VAT£751.63Incl. VAT | £626.36Ex. VAT£751.63Incl. VAT | |
| Product CodeMG20303 | up to 140+ LPM, 0.35 kW/°C, 1” BSP ports 3 phase | £808.15Ex. VAT£969.78Incl. VAT | £808.15Ex. VAT£969.78Incl. VAT | |
| Product CodeMG20403 | up to 160+ LPM, 0.5kW/°C, 1-1/4” BSP ports 3 phase | £1,074.90Ex. VAT£1,289.88Incl. VAT | £1,074.90Ex. VAT£1,289.88Incl. VAT | |
| Product CodeMG20504 | up to 180+ LPM, 0.7 kW/°C, 1-1/4” BSP ports 3 phase | £1,308.06Ex. VAT£1,569.67Incl. VAT | £1,308.06Ex. VAT£1,569.67Incl. VAT | |
| Product CodeHPA36 | up to 180+ LPM, 1.08 kW/°C, 1-1/4" BSP ports 3 phase | £2,058.91Ex. VAT£2,470.69Incl. VAT | £2,058.91Ex. VAT£2,470.69Incl. VAT | |
| Product CodeHPA72 | up to 400+ LPM, 1.8 kW/°C, 1-1/2" BSP ports 3 phase | £2,469.91Ex. VAT£2,963.89Incl. VAT | £2,469.91Ex. VAT£2,963.89Incl. VAT | |
| Product CodeHPA135 | up to 700+ LPM, 3.25 kW/°C, 2-1/2" SAE ports 3 phase | £4,100.05Ex. VAT£4,920.06Incl. VAT | £4,100.05Ex. VAT£4,920.06Incl. VAT | |
| Product CodeHPA180 | up to 700+ LPM, 4.5 kW/°C, 2-1/2" SAE ports 3 phase | £5,378.47Ex. VAT£6,454.16Incl. VAT | £5,378.47Ex. VAT£6,454.16Incl. VAT |

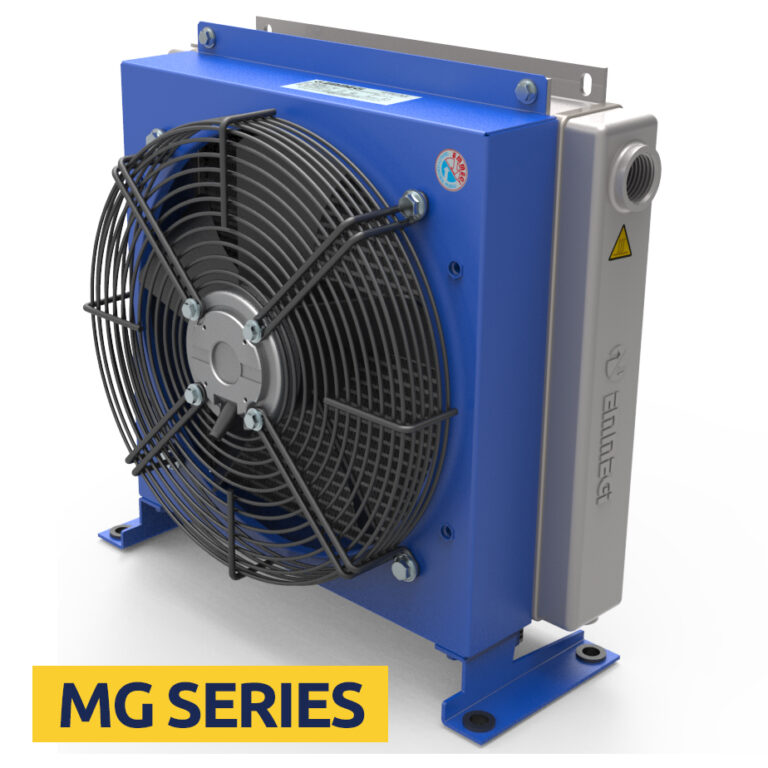

Emmegi MG Air series air-oil heat exchangers are used to cool hydraulic oil systems by cooling the ambient air that passes over the radiant using a fan operated by an electric or hydraulic motor.
The cooler element is produced by a braze-welding process carried out under vacuum. The configuration of the cooling pipes increases the turbulence of the fluid and the exchange capacity; special jets on the cooler finning further improve the total transmission coefficient.
The result is a very small, light and robust technologically advanced product. The technical specification of the cooler element is as follows – material: long life aluminium, operating pressure: 20 bar, test pressure: 35 bar, maximum operating temperature: 120 degrees centigrade.
