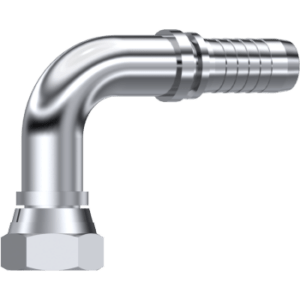

NPSM 90° Swept Female (60° Cone) Hose Fitting

The NPSM 90° Swept Female (60° Cone) Hose Fitting is a vital component in hydraulic and fluid transfer systems, designed to facilitate efficient connections at a 90-degree angle. This fitting is specifically engineered to accommodate NPSM threads, ensuring compatibility with a wide range of hoses and systems.

Key Features

• NPSM Thread Compatibility: Designed with National Pipe Straight Mechanical threads, this fitting guarantees a secure and efficient connection to a variety of hoses and hydraulic components.
• 90° Swept Design: The 90° swept configuration allows for smooth transitions in hydraulic lines, effectively reducing the risk of kinking and minimising turbulence.
• 60° Cone Sealing Surface: The 60° cone design provides an effective sealing surface, ensuring a leak-proof connection that enhances system integrity.
• Durable Construction: Manufactured from high-quality materials, the NPSM 90° Swept Female fitting is resistant to corrosion, wear, and extreme temperatures.
• Versatile Sizing Options: Available in various sizes, this fitting can accommodate different hose diameters and system requirements.
• Ease of Installation: The straightforward design and NPSM thread compatibility simplify the installation process.

Benefits

• Optimised Fluid Flow: The 90° swept design enhances fluid dynamics by reducing turbulence and pressure drops.
• Enhanced Safety: By providing a secure and leak-proof connection, the NPSM 90° Swept Female fitting significantly mitigates the risk of fluid leaks.
• Space Efficiency: The 90° angle design is particularly useful in tight spaces where a straight connection may not be feasible, allowing for more versatile installations.
• Cost-Effectiveness: The durable construction of the NPSM 90° Swept Female fitting ensures lower replacement costs and reduced maintenance expenses over time.
• Versatile Applications: Suitable for various industries, including automotive, manufacturing, and construction, this fitting allows for the standardisation of components across different systems.

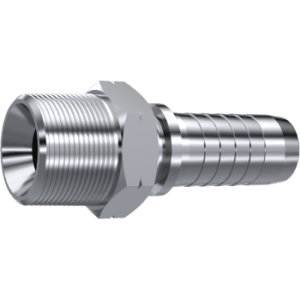

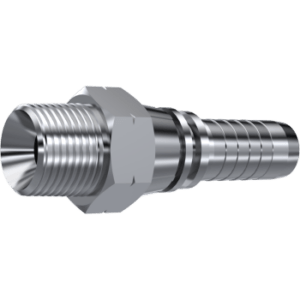

We have a wide range of NPT hose inserts available, click here to see our full range.

*Images are for illustration purposes only
