HDC Series Hollow Plunger Double Acting Cylinders

FREE UK MAINLAND DELIVERY available on orders over £150 Exclusions apply

Search:

Total Price: £0.000.00

Product Code	Description	PriceEx. VATIncl. VAT	TotalEx. VATIncl. VAT	Quantity
Product CodeHDC3007	30 Ton Push, 20 Ton Pull Cylinder, 178mm Stroke, 331mm Collapsed Height	£1,770.12Ex. VAT£2,124.14Incl. VAT	£1,770.12Ex. VAT£2,124.14Incl. VAT	QUANTITYQTY 30 Ton Push, 20 Ton Pull Cylinder, 178mm Stroke, 331mm Collapsed Height quantity
Product CodeHDC3010	30 Ton Push, 20 Ton Pull Cylinder, 257mm Stroke, 432mm Collapsed Height	£3,706.56Ex. VAT£4,447.87Incl. VAT	£3,706.56Ex. VAT£4,447.87Incl. VAT	QUANTITYQTY 30 Ton Push, 20 Ton Pull Cylinder, 257mm Stroke, 432mm Collapsed Height quantity
Product CodeHDC6003	60 Ton Push, 44 Ton Pull Cylinder, 89mm Stroke, 248mm Collapsed Height	£2,340.36Ex. VAT£2,808.43Incl. VAT	£2,340.36Ex. VAT£2,808.43Incl. VAT	QUANTITYQTY 60 Ton Push, 44 Ton Pull Cylinder, 89mm Stroke, 248mm Collapsed Height quantity
Product CodeHDC6006	60 Ton Push, 44 Ton Pull Cylinder, 165mm Stroke, 324mm Collapsed Height	£3,587.76Ex. VAT£4,305.31Incl. VAT	£3,587.76Ex. VAT£4,305.31Incl. VAT	QUANTITYQTY 60 Ton Push, 44 Ton Pull Cylinder, 165mm Stroke, 324mm Collapsed Height quantity
Product CodeHDC6010	60 Ton Push, 44 Ton Pull Cylinder, 257mm Stroke, 438mm Collapsed Height	£4,675.96Ex. VAT£5,611.15Incl. VAT	£4,675.96Ex. VAT£5,611.15Incl. VAT	QUANTITYQTY 60 Ton Push, 44 Ton Pull Cylinder, 257mm Stroke, 438mm Collapsed Height quantity
Product CodeHDC10001	100 Ton Push, 71 Pull Cylinder, 38mm Stroke, 165mm Collapsed Height	£3,765.96Ex. VAT£4,519.15Incl. VAT	£3,765.96Ex. VAT£4,519.15Incl. VAT	QUANTITYQTY 100 Ton Push, 71 Pull Cylinder, 38mm Stroke, 165mm Collapsed Height quantity
Product CodeHDC10003	100 Ton Push, 71 Pull Cylinder, 76mm Stroke, 254mm Collapsed Height	£4,533.40Ex. VAT£5,440.08Incl. VAT	£4,533.40Ex. VAT£5,440.08Incl. VAT	QUANTITYQTY 100 Ton Push, 71 Pull Cylinder, 76mm Stroke, 254mm Collapsed Height quantity
Product CodeHDC10006	100 Ton Push, 71 Pull Cylinder, 152mm Stroke, 343mm Collapsed Height	£4,894.56Ex. VAT£5,873.47Incl. VAT	£4,894.56Ex. VAT£5,873.47Incl. VAT	QUANTITYQTY 100 Ton Push, 71 Pull Cylinder, 152mm Stroke, 343mm Collapsed Height quantity
Product CodeHDC10010	100 Ton Push, 71 Pull Cylinder, 257mm Stroke, 461mm Collapsed Height	£6,605.28Ex. VAT£7,926.34Incl. VAT	£6,605.28Ex. VAT£7,926.34Incl. VAT	QUANTITYQTY 100 Ton Push, 71 Pull Cylinder, 257mm Stroke, 461mm Collapsed Height quantity
Product CodeHDC15008	150 Ton Push, 82.8 Ton Pull Cylinder, 203mm Stroke, 349mm Collapsed Height	£9,256.89Ex. VAT£11,108.27Incl. VAT	£9,256.89Ex. VAT£11,108.27Incl. VAT	QUANTITYQTY 150 Ton Push, 82.8 Ton Pull Cylinder, 203mm Stroke, 349mm Collapsed Height quantity

Total Price: £0.000.00

Download Datasheet

Product description

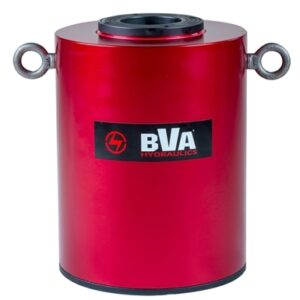

HDC Series Hollow Plunger Double Acting Cylinder
Our HDC series hollow plunger double acting cylinder are manufactured by BVA Hydraulics include a one solid piece alloy steel body; and also features a hard chrome plated piston plunger which protects the cylinder from damage and corrosion. The polyurethane U-Cup seals also ensure a secured seal and a long life.

We have a range of many different types of double acting hollow plunger high pressure cylinders from 30 to 150 tons and a range of 38mm to 257mm stroke. Our double acting cylinders have a maximum operating pressure of 700 BAR and also range from a minimum height of 165mm and 718mm.

If you require any more information please feel free to get in contact with our sales team.

Related products

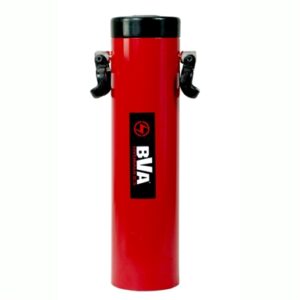

HD Series Double Acting Cylinders

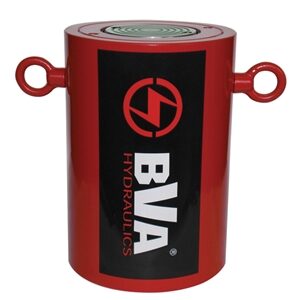

HDG Series High Tonnage Double Acting Cylinders

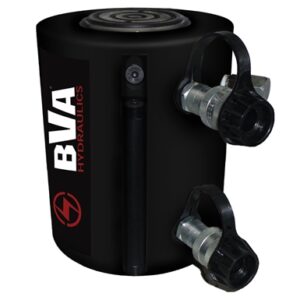

HDU Series Aluminium Double Acting Cylinders
