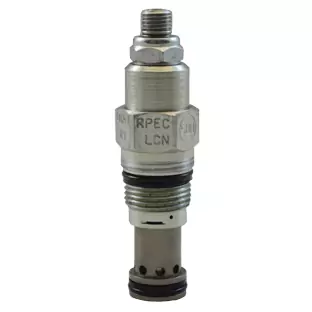

(RPEC-LCN) Pilot operated, balanced piston relief valve, 95 L/min, T-10A Cavity, 150 to 6000 PSI adjustment range, 1000 PSI standard setting - Image 2

(RPEC-LCN) Pilot operated, balanced piston relief valve, 95 L/min, T-10A Cavity, 150 to 6000 PSI adjustment range, 1000 PSI standard setting PRODUCT CODE - RPEC-LCN

£46.61Ex. VAT£55.93Incl. VAT

RPEC-LCN Features

  • Capacity: 95 L/min
  • Cavity: T-10A
  • Control: Standard Screw Adjustment
  • Adjustment Range: 150 to 6000 PSI (10.5 to 420 bar)
  • Standard Setting: 1000 PSI (70 bar)
  • Seal Material: Buna-N
Full Description
QTY

Product Description

RPEC-LCN Technical Features

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

  • All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
  • Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
  • Main stage orifice is protected by a 150-micron stainless steel screen.
  • Not suitable for use in load holding applications due to spool leakage.
  • Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.



RPEC-LCN Technical Data

Cavity T-10A
Series 1
Capacity 95 L/min.
Maximum Operating Pressure 350 bar
Factory Pressure Settings Established at 15 L/min.
Maximum Valve Leakage at 110 SUS (24 cSt) 30 cc/min.@70 bar
Response Time – Typical 10 ms
Adjustment – No. of CW Turns from Min. to Max. setting 5
Valve Hex Size 22,2 mm
Valve Installation Torque 41 – 47 Nm
Adjustment Screw Internal Hex Size 4 mm
Locknut Hex Size 15 mm
Locknut Torque 9 – 10 Nm
Model Weight 0.14 kg.
Seal kit – Cartridge Buna: 990010007
Seal kit – Cartridge EPDM: 990010014
Seal kit – Cartridge Polyurethane: 990010002
Seal kit – Cartridge Viton: 990010006
