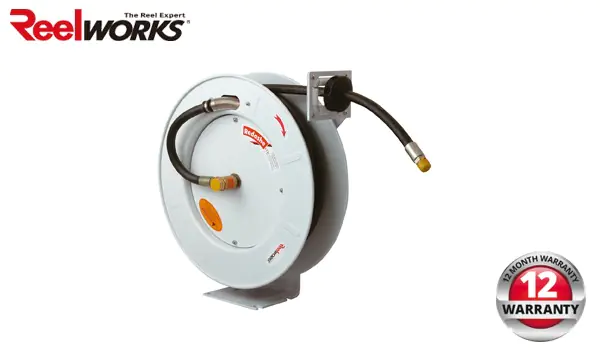

Reelworks 808 c/w 15m x 1/2" R1 138bar PRODUCT CODE - C808-450M

Product Description

The Reelworks 808 series are a high performance spring rewind hose reels constructed in heavy gauge powder coated steel for use in most low/medium and high pressure applications. The 4-position roller guide arm adjusts for wall, overhead or ceiling mounting positions. All reels come supplied with fitted hose.

Features:

• Corrosion resistant powder coating
• Guide arm adjustable handling up to 9 positions
• Solid 1″ steel axle
• Multi-position ratchet lock
• Spring fully enclosed and lubricated
• Latching of hose at any length
• All brass swivel assembly
• Feeder hose available at an additional cost

Specification

• Hose Capacity: 15 meter
• Hose ID: 1/2″ / 12.5mm
• Max Working Pressure: 138 bar / 2000 PSI
• Working Temperature: 100°C
• Inlet / Outlet: 1/2” BSPF / 1/2″ BSPM
• Hose Type: Medium pressure air, water & oil
• Reel Dimensions: W: 22cm x H: 55cm x D: 53cm
• Approx Weight: 28kg
