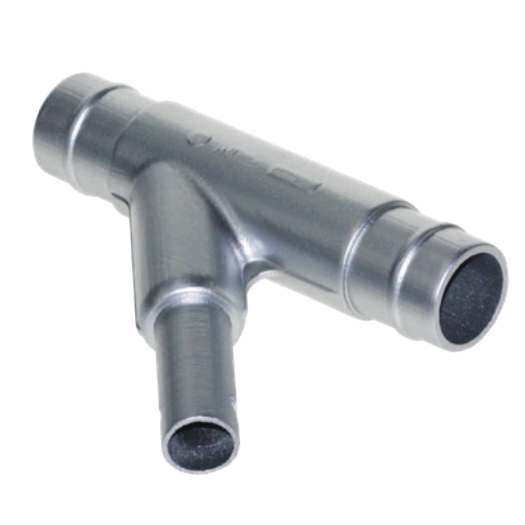

REDUCER Y Ø 100 > Ø 63 PRODUCT CODE - RA26 L3 63

Product Description

> Transair REDUCER Y

Maximum Operating Pressure: 232 psi, 15,9 bar
Minimum Operating Temperature: -4 °F, -20 °C
Maximum Operating Temperature: 115°F, 46.1°C
Vacuum Pressure Rating: 29.6 Inch-Hg
Application: Compressed Air, Vacuum, Industrial/Inert Gases
Specifications Met: EN 755.2, EN 755.8, EN 573.3, ISO 9001, ASME B31.1 – 31.9, ISO 8573 (Air Quality), TUV Certification, CE Conformity

Use RR01 connectors to connect Y RA26 to Transair aluminium pipe Ø76, Ø100 or Ø168 and a Transair pipe-to-pipe connector 6606 to connect Y RA26 to Transair aluminium pipe Ø40, Ø50 or Ø63.
