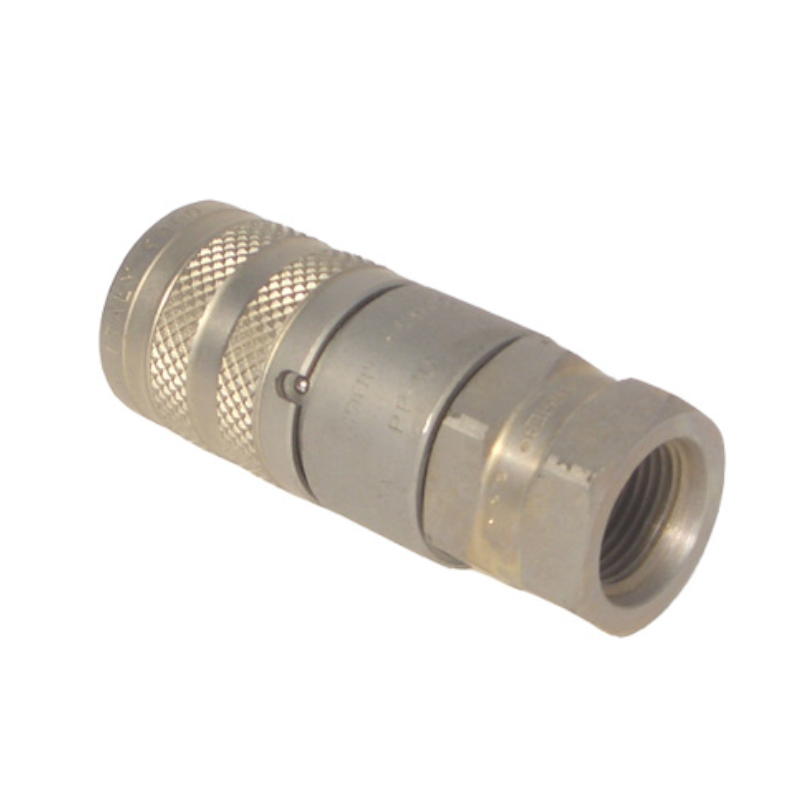

FASTER 1/2" FLAT FACE CARRIER 1-1/16"-12 UN FEMALE ORB PRODUCT CODE - FFH0834SAEF

Product Description

Flat Face
Carrier
-16 UNF Female Orb
Application: agricultural technology, industry, hydraulic tools, construction machinery
Locking: ball lock (safety lock)
Coupling: Without actuation of the sliding sleeve, locking automatically
Uncoupling: by pushing back the locking sleeve
Couplability: depressurized
Valve: Double-sided, plug double valve, sleeve single valve
Working pressure: 180 – 350 bar (with 4-fold safety)
Volume flow: 20 l / min – 1400 l / min
