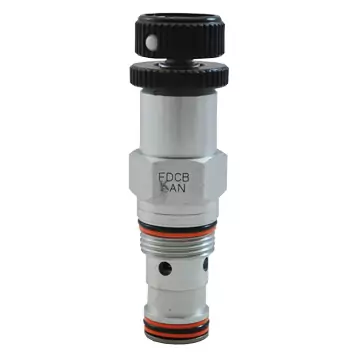

FDCB-KAN

(FDCB-KAN) Fully adjustable pressure compensated flow control valve with reverse flow check, 45 L/min, T-5A Cavity, 0.8 to 45 L/min adjustment range, hand knob operated PRODUCT CODE - FDCB-KAN

£110.71Ex. VAT£132.85Incl. VAT

FDCB-KAN Features

  • Capacity: 45 L/min
  • Cavity: T-5A
  • Control: Handknob
  • Adjustment Range: 0.8 to 45 L/min
  • Seal Material: Buna-N
Full Description
QTY

Product Description

FDCB-KAN Technical Features

Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

  • All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
  • A balanced adjustment mechanism allows for easy adjustment even at high pressures.
  • The sharp-edged orifice design minimizes flow variations due to viscosity changes.
  • Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.



FDCB-KAN Technical Data

Cavity T-5A
Series 2
Capacity 45 L/min.
Maximum Operating Pressure 350 bar
Adjustment – No. of CCW Turns from Fully Closed to Fully Open 5
Valve Hex Size 28,6 mm
Valve Installation Torque 61 – 68 Nm
Adjustment Screw Internal Hex Size 4 mm
Locknut Hex Size 15 mm
Locknut Torque 9 – 10 Nm
Model Weight 0.31 kg.
Seal kit – Cartridge Buna: 990203007
Seal kit – Cartridge EPDM: 990203014
Seal kit – Cartridge Viton: 990203006
