CXBA-XAN

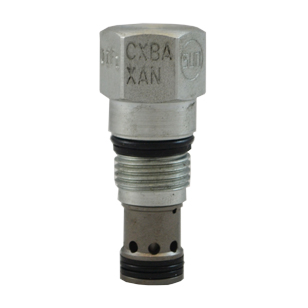

(CXBA-XAN) Free flow nose to side check valve, 40 L/min, T-162A Cavity, 4 PSI cracking pressure PRODUCT CODE - CXBA-XAN

£25.30Ex. VAT£30.36Incl. VAT

CXBA-XAN Features

  • Capacity: 40 L/min
  • Cavity: T-162A
  • Control: Not Adjustable
  • Cracking Pressure: 4 PSI (0.3 Bar)
  • Seal Material: Buna-N
Full Description
QTY

Product Description

CXBA-XAN Technical Features

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

  • Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
  • Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
  • Will accept 5000 psi (350 bar) at ports 1 and 2.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.



CXBA-XAN Technical Data

Cavity T-162A
Series 0
Capacity 40 L/min.
Maximum Operating Pressure 350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 0,07 cc/min.
Valve Hex Size 19,1 mm
Valve Installation Torque 27 – 33 Nm
Model Weight 0.08 kg.
Seal kit – Cartridge Buna: 990162007
Seal kit – Cartridge EPDM: 990162014
Seal kit – Cartridge Polyurethane: 990162002
Seal kit – Cartridge Viton: 990162006
