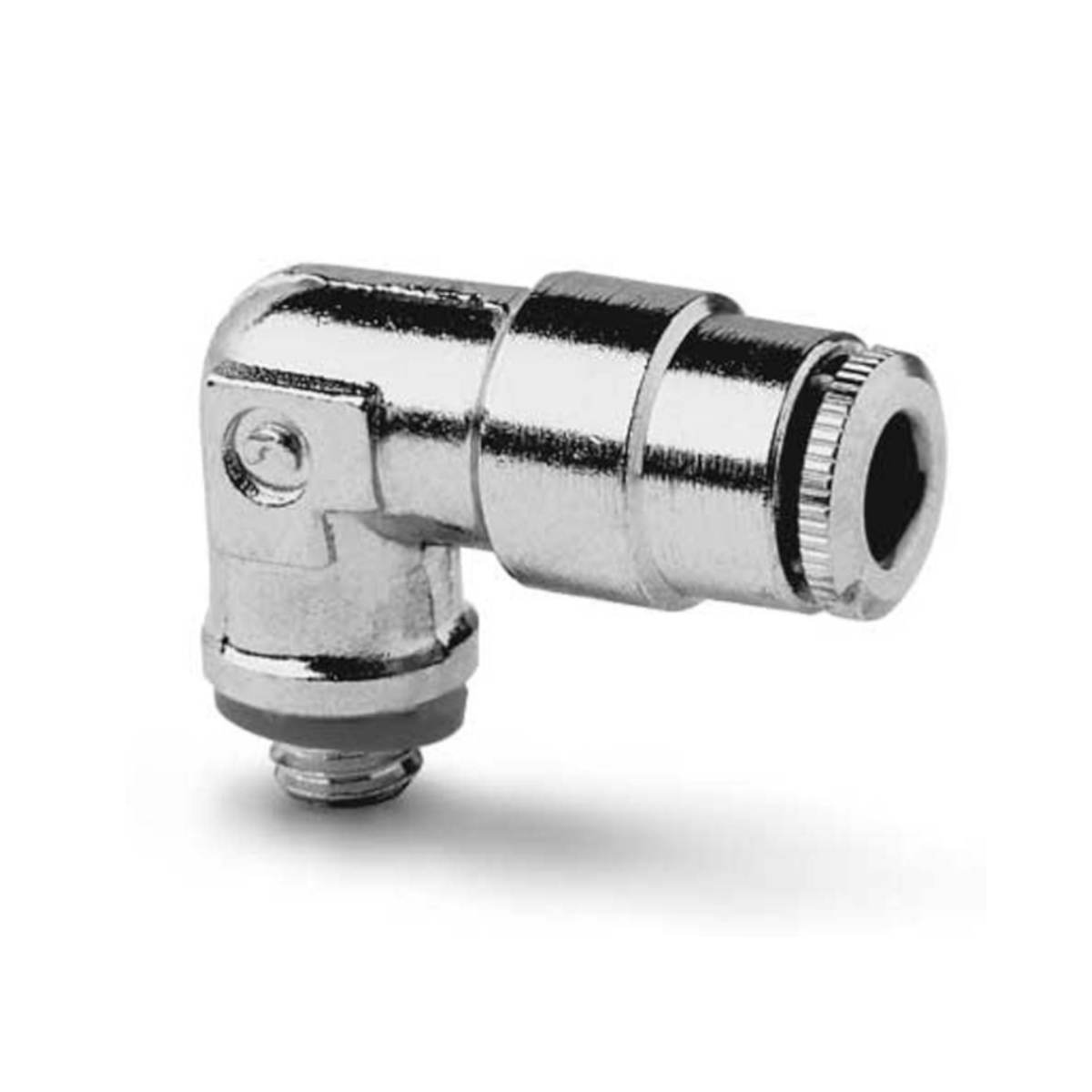

Parallel Push In Fitting Fixed Male Elbow-4mm tube-M5 thread PRODUCT CODE - 6501 4-M5

Product Description

The Parallel Push In Fitting Fixed Male Elbow is engineered to offer a secure and efficient right-angle connection between tubing and threaded ports in pneumatic and fluid systems. Ideal for applications with limited space, it provides consistent and reliable performance across various industrial settings.

Key Features:

• Right-Angle Design: Facilitates 90-degree connections.
• Push-In Connection: Allows for quick and secure tube insertion and removal.
• Parallel Male Thread: Ensures a stable and reliable connection to threaded ports.
• Durable Construction: Made from high-quality materials such as robust plastics or metal.
• Leak-Proof Seal: Provides a tight and secure connection to maintain system efficiency and prevent leaks.
• Compact Design: Small design allowing for a neat and efficient installation in confined spaces.
• Versatile Application: Applicable to a wide range of pneumatic and fluid systems across various industries.

Applications:

• Pneumatic Systems: Ideal for connecting tubing to valves and cylinders.
• Fluid Handling: Suitable for fluid distribution applications in laboratories, medical devices, and food and beverage processing.
• Automotive Industry: Used for connecting tube lines to components in automotive pneumatic systems.
• Industrial Equipment: Employed in machinery and equipment that require reliable and flexible tube connections to threaded components in tight spaces.

Technical Specifications:

• Connector Type: Fixed male elbow fitting
• Connection Method: Push-in for tubes parallel male thread for threaded connections
• Thread Type: Parallel male thread
• Tube Compatibility: Designed to fit standard tube sizes used in pneumatic and fluid systems
• Operating Pressure: Suitable for various pressure ranges depending on the material and design
• Temperature Range: Capable of operating within a wide temperature range suitable for different applications
