4 Lever Monoblock Valve, 3/8" BSP, 45 L/MIN, 315 Bar - for Double Acting Cylinders PRODUCT CODE - YFM35/4 3/8 4P DDDD

Product Description

3/8 BSP Monoblock Valves from Hydraulic Megastore

These 3/8″ BSP ported valves are rated to a maximum flow of 45 litres per minute and a maximum pressure of 315 bar.

Out of the box the valves are spring returned to the central position (no flow to the cylinders)

The monoblock valves come with a built in relief valve, pre-set to 140 bar. The relief valve has an adjustment range of between 60 and 200 bar.

Service ports, pressure ports and tank ports are all 3/8″ BSP on this model of valve.

Please see the datasheet for dimensional information.

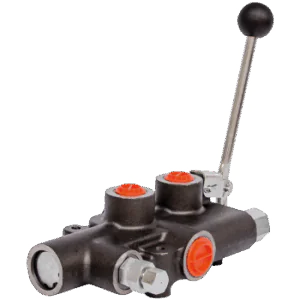

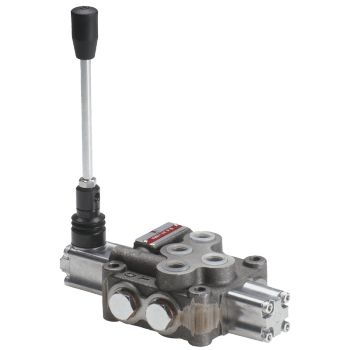

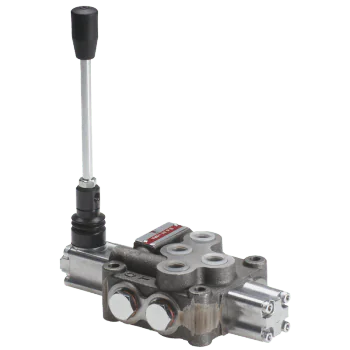

Image is for illustration purposes only and only shows a valve with 1 lever.
