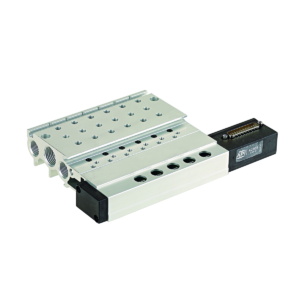

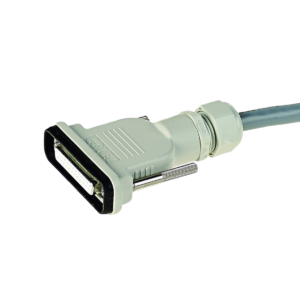

Sub bases with fixed position for A2 series Valves with a 25 Pole SUB-D connector and can be mounted on DIN 50 035 guides.

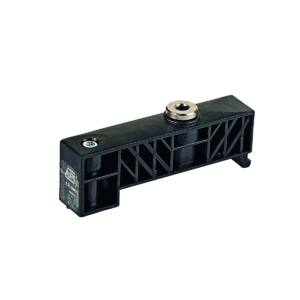

On each base, one position on the opposite side of the SUB-D connector is dedicated to the module for the external piloting of the valves.

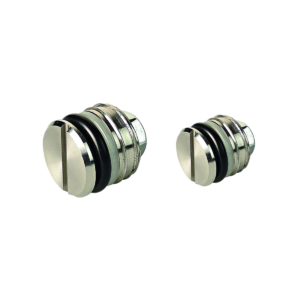

The main feeding of the valves can be divided by applying an internal diaphragm, in case you require feeding with two different pressures.
Likewise, the exhausts can be divided with the suitable diaphragms.
The case is mainly composed by aluminium, anodised to grant last in time. The covers in PBT glass charged, are sealed with an internal O-Ring to protect the electrical circuit from external atmospheric agents.
