Micro Power Packs from Hydraulic Megastore

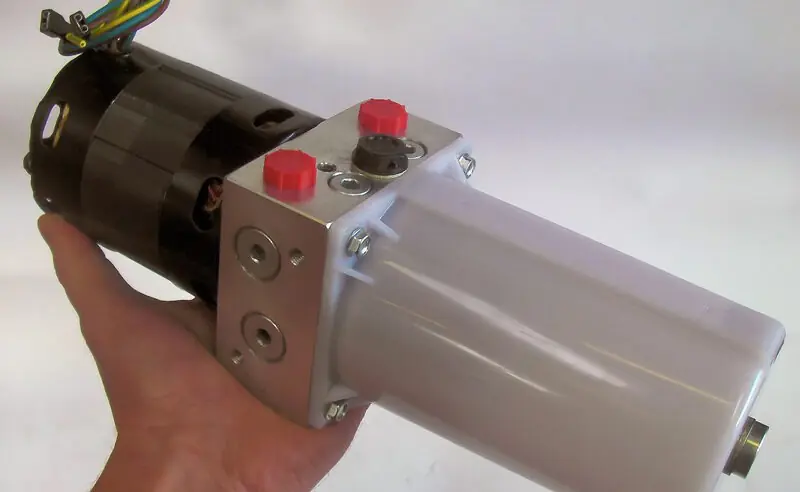

The micro hydraulic power pack is very compact and can operate both single acting (HPU) and double acting (HPR) applications. Typically used for mobility lifts where wheel chairs are lifted from vehicles, through floor lifts and door/gate opening actuators although there are many more applications that would suit a micro pack.
The HPR hydraulic micro power pack offers the flexibility to operate double acting hydraulic functions without the need for solenoid control valves. By simply reversing the motor the movement of a double acting hydraulic cylinder direction can be controlled and the built in dual Pilot Check Valves give leak free load holding. Dual pressure relief valves give separate control in each direction whilst dual pilot check valves prevent induced pressures and noise when excess full bore cylinder flow returns to the tank.
Later developments include circuits with manual overrides, motor spool control and low noise relief valves. “Thermal relief” valves are also possible, these protect from over-pressurizing in the output ports.
The HPU micro hydraulic power pack has a single acting hydraulic circuit, the check valve and solenoid valve hold the cylinder load up. A high quality hardened steel check valve insert ensures low leakage and excellent load holding. Versions with Normally open/closed solenoid valves and pressure compensating flow control valves are available.
All of these hydraulic micro power packs have a precision engineered aluminium manifold that houses the hardened steel valves. A carefully developed micro hydraulic pump gives pressures up to 200bar. Each manifold has an integrated suction filter element, ensuring all micro hydraulic systems are protected and give a long service life.
To drive the hydraulic pumps we offer DC motors from 150 to 800Watt, in 12V and 24VDC. 150 and 250Watt Fractional Horsepower AC motors as well as standard IEC frame AC motors from 0.18kW to 0.37kW.
Pump sizes range from 0.17cc to 1.48cc/rev.
Tanks from 0.1 to 1.5 Litre, all of which can be in vertical (tank uppermost) or horizontal orientation.
Request a call back from our technical team
Do you need a Hydraulic Power Pack but you’re not sure where to turn for technical support?
Here at Hydraulic Megastore we have the hydraulic technical expertise and experience to help you define the specification and build the optimal hydraulic solution.
| Image | Product Code | Description | PriceEx. VATIncl. VAT | Total PriceEx. VATIncl. VAT | Quantity |
|---|---|---|---|---|---|
 | Product CodeHPR1202HPRNSB05P | HPR1202HPRNSB05P | £999.00Ex. VAT£1,198.80Incl. VAT | £999.00Ex. VAT£1,198.80Incl. VAT | |
 | Product CodeHPU1202HSCNB05P | Uni-Directional Micro Power Pack | £250.00Ex. VAT£300.00Incl. VAT | £250.00Ex. VAT£300.00Incl. VAT |
